Cartec Alloy Fittings: G100

Connecting Link

Clevis Sling Hook

Clevis Grab Hook with Saddle

Clevis Grab Hook with Saddle and Latch

Clevis Foundry Hook

Clevis Self Locking Hook

Eye Sling Hook with Forged Latch

Eye Foundry Hook

Eye Self Locking Hook

Eye Grab Hook with Saddle

Swivel Self Locking Hook

Alloy Hooks for Synthetic Slings

Weld-On Bucket Hook

Weld-On Lifting Ring Double Base

Weld-On Lifting Ring Single-Base w/Spring

Shortening Clutch with Safety

Shortening Clutch with Semi-Connecting Link

Clevis Shortening Hooks

Clevis Master Set 1-Leg

Clevis Master Set 2-Leg

Clevis Master Set 4-Leg

CLX Grade 100 Connecting Link

Part #	Chain Size (in)	WLL (lbs)	A (in)	C (in)	O (in)	R (in)	P (in)	S (in)	Weight (lbs)
CLX06	7/32-1/4	3,000	0.55	0.71	0.71	1.77	0.31	0.30	0.15
CLX07	9/32	4,300	0.70	0.79	0.81	1.99	0.40	0.35	0.31
CLX08	5/16	5,700	0.75	1.00	0.93	2.44	0.45	0.39	0.44
CLX10	3/8	8,800	0.94	1.18	1.08	2.83	0.50	0.50	0.77
CLX13	1/2	15,000	1.10	1.42	1.31	3.44	0.75	0.66	1.63
CLX16	5/8	22,600	1.35	1.59	1.56	4.13	0.81	0.81	2.56
CLX20	3/4	35,300	1.65	1.81	1.81	4.45	1.10	0.98	5.51
CLX22	7/8	42,700	1.93	2.17	2.28	5.24	1.14	1.10	6.83
CLX26	1	59,700	2.24	3.35	2.76	7.56	1.57	1.18	14.99
CLX32	1-1/4	90,400	3.15	3.33	3.70	8.11	1.85	1.38	25.35

Back to Top

CBX_SF Grade 100 Clevis Sling Hook with Forged Latch

Part #	Chain Size (in)	WLL (lbs)	A (in)	A1 (in)	B (in)	C (in)	G (in)	H (in)	R (in)	PXL	Weight (lbs)
CBX06SF	7/32-1/4	3,000	1.02	0.75	0.28	0.31	0.59	0.79	2.72	0.30 X 0.69	0.68
CBX07SF	9/32	4,300	1.34	1.02	0.37	0.39	0.75	1.10	3.74	0.35 X 0.89	1.41
CBX08SF	5/16	5,700	1.34	1.02	0.37	0.39	0.75	1.10	3.74	0.39 X 0.89	1.36
CBX10SF	3/8	8,800	1.57	1.22	0.47	0.53	0.98	1.30	4.33	0.51 X 1.16	2.59
CBX13SF	1/2	15,000	2.01	1.57	0.59	0.67	1.18	1.57	5.35	0.63 X 1.46	4.66
CBX16SF	5/8	22,600	2.20	1.77	0.71	0.87	1.46	1.89	6.10	0.79 X 2.05	7.67
CBX20SF	3/4	35,300	2.36	2.09	0.91	1.02	2.01	2.05	7.28	0.94 X 2.87	14.99
CBX22SF	7/8	42,700	2.76	2.44	1.02	1.14	1.97	2.48	8.27	1.02 X 2.83	20.08

Back to Top

CFX Grade 100 Clevis Grab Hook with Saddle

Part #	Chain Size (in)	WLL (lbs)	A (in)	B (in)	C (in)	G (in)	H (in)	R (in)	M (in)	PxL	Weight (lbs)
CFX06	7/32-1/4	3,000	0.31	0.29	0.35	0.87	0.87	2.03	1.40	0.30 X 0.69	0.44
CFX07	9/32	4,300	0.39	0.39	0.45	1.18	1.10	2.62	1.85	0.35 X 0.89	0.97
CFX08	5/16	5,700	0.39	0.39	0.43	1.18	1.10	2.60	1.85	0.39 X 0.89	0.97
CFX10	3/8	8,800	0.51	0.51	0.59	1.73	1.34	3.15	2.17	0.51 X 1.24	2.12
CFX13	1/2	15,000	0.67	0.63	0.69	2.09	1.85	4.15	3.19	0.63 X 1.65	4.63
CFX16	5/8	22,600	0.75	0.75	0.72	2.52	2.36	4.40	3.62	0.83 X 2.03	7.50
CFX20	3/4	35,300	0.93	0.91	0.87	3.35	2.56	4.65	3.94	0.94 X 2.42	11.46
CFX22	7/8	42,700	1.02	1.02	0.98	3.62	2.68	6.06	4.72	1.02 X 2.83	17.2

Back to Top

CFX_S Grade 100 Clevis Grab Hook with Saddle & Latch

Part #	Chain Size (in)	WLL (lbs)	A (in)	B (in)	C (in)	G (in)	H (in)	R (in)	M (in)	PxL	Weight (lbs)
CFX06S	7/32-1/4	3,000	0.31	0.31	0.35	0.87	0.87	1.99	1.40	0.30 X 0.69	0.44
CFX07S	9/32	4,300	0.39	0.39	0.45	1.18	1.10	2.62	1.85	0.35 X 0.89	0.97
CFX08S	5/16	5,700	0.39	0.39	0.43	1.18	1.10	2.60	1.85	0.39 X 0.89	0.97
CFX10S	3/8	8,800	0.51	0.51	0.59	1.73	1.34	3.15	2.17	0.51 X 1.24	2.12
CFX13S	1/2	15,000	0.67	0.63	0.69	2.09	1.85	4.15	3.19	0.63 X 1.65	4.63
CFX16S	5/8	22,600	0.75	0.75	0.72	2.52	2.36	4.40	3.62	0.83 X 2.03	7.50

Back to Top

CYFX Grade 100 Clevis Foundry Hook

Part #	Chain Size (in)	WLL (lbs)	A (in)	B (in)	C (in)	G (in)	H (in)	R (in)	PxL	Weight (lbs)
CYFX06	7/32-1/4	3,000	2.11	0.33	0.26	0.87	1.02	3.58	0.30 X 0.69	1.54
CYFX07	9/32	4,300	2.52	0.39	0.45	1.02	1.22	4.74	0.35 X 0.89	2.43
CYFX08	5/16	5,700	2.52	0.39	0.45	1.02	1.22	4.74	0.39 X 0.89	2.43
CYFX10	3/8	8,800	2.99	0.51	0.59	1.18	1.34	5.16	0.51 X 1.24	3.75
CYFX13	1/2	15,000	3.50	0.67	0.69	1.57	1.75	5.83	0.63 X 1.65	7.94
CYFX16	5/8	22,600	3.98	0.75	0.85	1.77	1.99	7.81	0.83 X 2.03	12.35

Back to Top

CRFX Grade 100 Clevis Self Locking Hooks

Part #	Chain Size (in)	WLL	A (in)	B (in)	C (in)	G (in)	H (in)	R (in)	T (in)	PxL	Weight (lbs)
CRFX06	7/32-1/4	3,000	1.10	0.28	0.31	0.63	0.83	3.70	1.38	0.30 x 0.69	1.10
CRFX07	9/32	4,300	1.34	0.35	0.39	0.79	1.02	4.84	1.69	0.35 x 0.89	2.09
CRFX08	5/16	5,700	1.34	0.35	0.39	0.79	1.02	4.84	1.69	0.39 x 0.89	2.09
CRFX10	3/8	8,800	1.77	0.47	0.55	0.98	1.18	5.63	2.20	0.51 x 1.24	3.53
CRFX13	1/2	15,000	2.01	0.59	0.67	1.38	1.57	7.09	2.72	0.63 x 1.65	7.05
CRFX16	5/8	22,600	2.36	0.75	0.75	1.42	1.97	8.46	3.15	0.83 x 2.03	13.23
CRFX20	3/4	35,300	2.76	0.91	1.02	2.36	2.64	9.96	3.54	0.94 x 2.87	21.61
CRFX22	7/8	42,200	3.23	1.02	1.26	2.44	2.76	11.30	3.94	1.02 x 2.83	31.75

Back to Top

CAX Grade 100 Eye Sling Hook with Forged Latch

Part #	Chain Size (in)	WLL (lbs)	A (in)	A1 (in)	D (in)	G (in)	H (in)	O (in)	R (in)	Weight (lbs)
CAX06SF	7/32-1/4	3,000	1.02	0.75	0.39	0.63	0.79	0.79	3.19	0.55
CAX08SF	9/32-5/16	5,700	1.30	1.02	0.43	0.75	1.14	0.98	3.98	1.10
CAX10SF	3/8	8,800	1.57	1.22	0.63	1.02	1.30	1.34	5.16	2.14
CAX13SF	1/2	15,000	2.01	1.57	0.75	1.30	1.65	1.69	6.26	4.19
CAX16SF	5/8	22,600	2.20	1.77	0.96	1.57	1.97	1.97	7.20	7.28
CAX20SF	3/4	35,300	2.36	2.05	1.06	1.89	2.09	2.17	7.99	9.92
CAX22SF	7/8	42,700	2.76	2.44	1.14	1.97	2.36	2.36	8.82	15.65
CAX26SF	1	59,700	3.03	2.87	1.38	2.36	2.95	2.76	10.12	26.46
CAX32SF	1-1/4	90,400	4.02	3.70	1.65	2.87	3.58	3.31	13.19	61.06

Back to Top

CYX Grade 100 Eye Foundry Hook

Part #	Chain Size (in)	WLL (lbs)	A (in)	D (in)	G (in)	H (in)	O (in)	R (in)	Weight (lbs)
CYX06	7/32-1/4	3,000	2.11	0.45	0.87	1.02	0.59	4.04	1.34
CYX08	9/32-5/16	5,700	2.44	0.53	0.98	1.14	0.94	5.04	2.03
CYX10	3/8	8,800	2.99	0.55	0.90	1.18	1.26	5.91	3.90
CYX13	1/2	15,000	3.50	0.75	1.50	1.57	1.06	6.81	6.22
CYX16	5/8	22,600	4.02	0.94	1.77	1.89	1.85	8.27	11.09
CYX20	3/4	35,300	4.49	1.10	2.13	2.36	2.20	10.24	16.76
CYX22	7/8	42,700	5.00	1.26	2.48	2.76	2.17	10.83	27.12
CYX26	1	59,700	5.35	1.38	2.83	3.15	2.44	12.01	39.46
CYX32	1-1/4	90,400	6.02	1.50	3.31	3.74	2.76	12.99	60.19

Back to Top

CROX Grade 100 Eye Self Locking Hook

Part #	Chain Size (in)	WLL (lbs)	A (in)	D (in)	G (in)	H (in)	O (in)	R (in)	T (in)	Weight (lbs)
CROX06	7/32-1/4	3,000	1.10	0.43	0.63	0.83	0.83	4.29	1.38	1.10
CROX08	9/32-5/16	5,700	1.34	0.47	0.79	1.02	1.06	5.31	1.69	2.12
CROX10	3/8	8,800	1.77	0.63	0.98	1.18	1.34	6.61	2.20	3.64
CROX13	1/2	15,000	2.01	0.79	1.38	1.57	1.57	8.07	2.72	7.17
CROX16	5/8	22,600	2.36	1.06	1.42	1.97	1.97	9.88	3.15	13.45
CROX20	3/4	35,300	2.76	1.18	2.36	2.64	2.36	11.42	3.54	21.61
CROX22	7/8	42,700	3.15	1.26	2.44	2.76	2.76	12.68	3.94	31.75

Back to Top

CDX Grade 100 Eye Grab Hook with Saddle

Part #	Chain Size (in)	WLL (lbs)	A (in)	D (in)	G (in)	H (in)	O (in)	R (in)	M (in)	Weight (lbs)
CDX06	7/32-1/4	3,000	0.31	0.33	0.87	0.87	0.53	2.11	1.40	0.40
CDX08	9/32-5/16	5,700	0.39	0.43	1.18	1.10	0.67	2.76	1.85	0.88
CDX10	3/8	8,800	0.51	0.59	1.73	1.34	0.87	3.41	2.17	1.94
CDX13	1/2	15,000	0.67	0.71	2.09	1.85	1.02	4.35	3.19	4.30
CDX16	5/8	22,600	0.75	0.83	2.52	2.36	1.26	5.08	3.62	7.05
CDX20	3/4	35,300	0.93	0.91	3.35	2.52	1.50	6.04	3.94	10.80
CDX22	7/8	42,700	1.02	1.18	3.43	2.80	1.65	7.24	4.53	16.53
CDX26	1	59,700	1.20	1.42	3.94	3.54	2.17	8.39	5.00	28.66
CDX32	1-1/4	90,400	1.52	1.73	6.30	4.41	2.36	9.65	7.87	67.24

Back to Top

CRGX Grade 100 Swivel Self Locking Hook

Part #	Chain Size (in)	WLL (lbs)	R (in)	A (in)	B (in)	O (in)	D (in)	G (in)	H (in)	T (in)	Weight (lbs)
CRGX06	7/32-1/4	3,000	6.30	1.10	1.06	1.42	0.51	0.63	0.83	1.38	1.32
CRGX08	9/32-5/16	5,700	7.17	1.34	1.06	1.42	0.51	0.79	1.02	1.69	2.43
CRGX10	3/8	8,800	8.54	1.77	1.38	1.77	0.63	0.98	1.18	2.20	4.41
CRGX13	1/2	15,000	10.67	2.13	1.77	1.97	0.83	1.38	1.57	2.72	8.82
CRGX16	5/8	22,600	12.60	2.44	2.28	2.44	0.94	1.50	1.97	3.15	14.99

Back to Top

Alloy Hooks for Synthetic Slings

Part #	Color	WLL (lbs)	A (in)	B (in)	C (in)	D (in)	G (in)	H (in)	P (in)	T (in)	Weight (lbs)
CJ026	Purple	2,600	3.07	4.84	0.47	1.61	0.67	0.79	0.63	1.22	1.54
CJ053	Green	5,300	3.58	5.83	0.75	2.17	0.83	1.02	0.67	1.57	2.65
CJ084	Yellow	8,400	4.45	6.89	0.83	2.17	0.98	1.26	0.98	1.97	4.85
CJ132	Red	13,200	5.24	8.78	1,57	2.76	1.42	1.57	1.42	2.34	9.92

Back to Top

832X Weld-On Bucket Hooks

Part #	WLL metric tons	A (in)	B (in)	C (in)	D (in)	E (in)	F (in)	G (in)	H (in)	Weight (lbs)
C832X015	1.5	0.98	3.11	1.10	1.57	0.59	1.58	0.39	4.61	1.54
C832X025	2.5	1.18	3.98	1.38	1.85	0.83	1.97	0.39	5.79	3.09
C832X040	4	1.46	4.96	1.69	2.48	1.02	2.36	0.59	6.73	5.95
C832X067	6.7	1.89	6.22	2.13	2.80	1.30	2.76	0.59	8.19	10.58

Back to Top

820X Weld-On Lifting Ring Double Base

Part #	WLL metric tons	A (in)	B (in)	C (in)	D (in)	E (in)	F (in)	G (in)	H (in)	Weight (lbs)
C820X04	4	0.55	2.56	1.89	1.14	5.28	0.55	2.36	3.11	1.61
C820X067	6.7	0.79	3.27	2.36	1.54	6.65	0.63	3.46	4.06	3.97
C820X10	10	0.87	3.78	2.56	1.89	7.72	0.77	3.86	4.65	6.61
C820X16	16	1.22	4.96	3.54	2.17	10.39	1.14	5.00	6.10	12.68
C820X30	30	1.65	6.89	5.12	3.11	14.61	1.77	6.18	8.54	35.27

Back to Top

830XM Weld-On Lifting Ring Single-Base w/Spring

Part #	WLL metric tons	A (in)	B (in)	C (in)	D (in)	E (in)	F (in)	G (in)	H (in)	Weight (lbs)
C830X015M	1.5	0.55	2.56	1.50	0.98	2.60	0.63	1.22	3.11	0.86
C830X025M	2.5	0.63	2.95	1.77	1.06	3.03	0.71	1.36	3.58	1.30
C830X040M	4	0.71	3.31	2.01	1.26	3.43	0.79	1.57	4.02	1.92
C830X067M	6.7	0.98	4.61	2.65	1.73	4.53	1.02	2.30	5.55	4.92
C830X010M	10	1.22	4.96	2.64	2.17	5.08	1.12	2.78	6.18	7.34
C830X016M	16	1.77	6.85	3.94	2.72	7.48	1.65	3.43	8.62	20.46

Back to Top

Shortening Clutch with Safety

Part #	For Chain Size	WLL (lbs)	A	B	C	D	E	F	G	PxL	Weight (lbs)
CXX 06	7/32-1/4	3,000	0.31	0.31	0.39	0.31	0.75	1.77	0.91	0.30 x 0.69	0.46
CXX 07	9/32	4,300	0.37	0.37	0.39	0.37	0.93	2.20	1.14	0.35 x 0.89	1.06
CXX 08	5/16	5,700	0.37	0.37	0.39	0.37	0.93	2.20	1.14	0.39 x 0.89	1.06
CXX 10	3/8	8,800	0.47	0.47	0.57	0.47	1.28	3.07	1.42	0.51 x 1.24	2.47
CXX 13	1/2	15,000	0.61	0.61	0.71	0.61	1.73	3.54	1.38	0.63 x 1.65	4.03
CXX 16	5/8	22,600	0.75	0.83	0.83	0.75	1.97	4.17	1.50	0.83 x 2.03	6.24
CXX 20	3/4	35,300	0.94	0.93	0.94	0.94	2.66	5.24	1.73	0.94 x 2.42	14.88

Back to Top

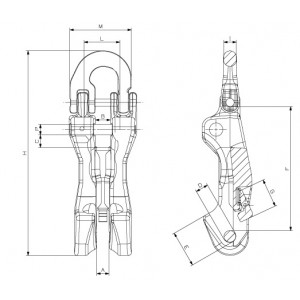

Shortening Clutch with Semi-Connecting Link

Part #	For Chain Size	WLL (lbs)	A	B	C	D	E	F	G	H	I	M	PxL	Weight (lbs)
CXXL 07S	9/32	4,300	0.37	0.37	0.39	0.37	0.93	2.20	1.14	6.22	0.33	1.75	0.35 x 1.34	1.81
CXXL 08S	5/16	5,700	0.37	0.37	0.39	0.37	0.93	2.20	1.14	6.46	0.39	1.97	0.39 x 1.34	1.87
CXXL 10S	3/8	8,800	0.47	0.47	0.57	0.47	1.28	3.07	1.42	7.60	0.49	2.38	0.51 x 1.54	3.55
CXXL 13S	1/2	15,000	0.61	0.61	0.71	0.61	1.73	3.54	1.38	9.82	0.63	2.99	0.63 x 2.09	7.21
CXXL 16S	5/8	22,600	0.75	0.83	0.83	0.75	1.97	4.17	1.50	11.93	0.79	3.82	0.83 x 2.76	12.68

Back to Top

CDFX Clevis Shortening Hook

Part #	For Chain Size	A”	B”	D”	G”	H”	O”	R”	PxL	Weight (lbs)	WLL (lbs)
CDFX06	7/32-1/4	0.31	0.30	0.35	1.14	1.46	0.71	3.35	0.30 x 0.69	0.66	3,000
CDFX07	9/32	0.37	0.39	0.47	1.54	2.13	0.94	4.82	0.35 x 0.89	1.48	4,300
CDFX08	5/16	0.37	0.39	0.47	1.54	2.13	0.94	4.80	0.39 x 0.89	1.48	5,700
CDFX10	3/8	0.51	0.47	0.57	1.97	2.76	1.22	6.30	0.51 x 1.24	2.87	8,800
CDFX13	1/2	0.63	0.61	0.71	2.52	3.62	1.46	8.03	0.63 x 1.65	6.61	15,000
CDFX16	5/8	0.79	0.73	0.94	3.15	4.01	1.89	9.13	0.83 x 2.03	11.46	22,600

Back to Top

CDFXA1 Clevis Master Set 1-Leg

Part #	For Chain Size	D”	W”	P”	R”	Weight (lbs)	WLL (lbs)
CDFXA107	9/32	0.51	2.36	4.33	9.13	2.65	4,300
CDFXA108	5/16	0.63	2.36	4.33	9.13	2.95	5,700
CDFXA110	3/8	0.71	2.95	5.31	11.61	4.89	8,800
CDFXA113	1/2	0.87	3.54	6.30	14.33	9.91	15,000
CDFXA116	5/8	1.02	3.94	7.09	16.22	16.52	22,600

Back to Top

CDFXA2 Clevis Master Set 2-Leg

Part #	For Chain Size	D”	W”	P”	R”	Weight (lbs)	WLL (lbs)
CDFXA207	9/32	0.63	2.36	4.33	9.06	4.43	7,400
CDFXA208	5/16	0.71	2.95	5.31	10.04	4.98	9,900
CDFXA210	3/8	0.87	3.54	6.30	12.59	8.82	15,200
CDFXA213	1/2	1.02	3.94	7.09	15.03	16.98	26,000
CDFXA216	5/8	1.26	4.33	7.87	16.92	29.76	39,100

Back to Top

CDFXA4 Clevis Master Set 4-Leg

Part #	For Chain Size	D”	W”	P”	R”	Weight (lbs)	WLL (lbs)
CDFXA407	9/32	0.87	3.54	6.30	13.78	10.36	11,200
CDFXA408	5/16	0.87	3.54	6.30	13.78	10.36	14,800
CDFXA410	3/8	1.02	3.94	7.09	16.73	18.96	22,900
CDFXA413	1/2	1.26	4.33	7.87	20.47	37.48	39,000
CDFXA416	5/8	1.42	5.51	10.24	25.00	63.93	58,700

Back to Top
